Smart Circular
Home Lift
FLIT icon Series — SE 700

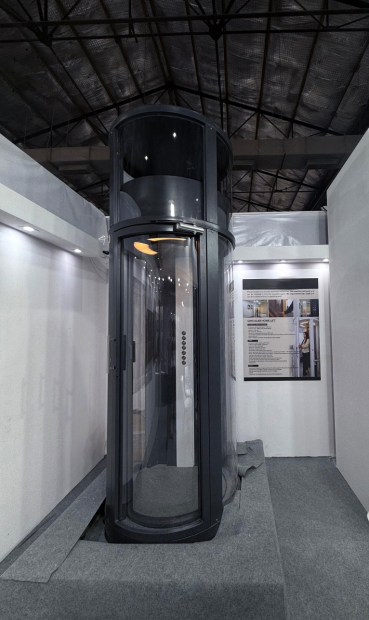

A breathtaking 360° circular glass cabin — pre-fabricated for zero civil work, no shaft required, and no supporting wall. Installs in minimal available space within days.
Circular Luxury,
Zero Compromise
The SE 700 is SmartHome Elevators' flagship circular home lift — part of the FLIT icon Pre-Fabricated series. Its self-supporting aluminium and steel structure requires absolutely no civil shaft, no supporting walls, and no machine room.
The hydraulic drive system uses a PU 80-litre power unit with an AKIS Turkey SJ 100 valve and ELMO/SB/Aestro motor for whisper-quiet operation. The Arkel ARL 300 controller with MDC_SMART 2 hydraulic electronics provides intelligent floor management and precise levelling.
“No need for civil work. No requirement for shaft. Can be installed without a supporting wall — in minimal available space.”
FLIT icon Series Brochure
Multi-Layer Safety System
CE Certified · Italian & European Components
Italian Rupture Valve
CE Certified rupture valve prevents excessive pressure — lift stops safely in any over-pressure event.
Pressure Switch
Monitors and maintains hydraulic pressure within certified safe operating limits at all times.
Mechanical Rope Break Safety
Independent rope-break safety catches activate within 5 cm of any uncontrolled descent.
Emergency Auto-Descent
On power failure, lift automatically descends to ground level at safe controlled speed.
Electro-Mechanical Interlocks
Certified interlocks at every landing level — doors cannot open unless cabin is precisely aligned.
RCCB Protection
40A, 100mA, 2-pole RCCB protects all electrical equipment from earth fault or overload.
Power & Hydraulic Drive
Site Requirements
Single phase connection with two earthing points required. 8 AWG 6mm² copper wiring is recommended for safe installation.
Circular Cabin Specification
The cabin features automatic LED lighting, a cabin fan, and push-button call controls with precise levelling at each landing. Door openings are available in-line or walk-through 180°, with optional 90° left or right configurations.
Interested in the
Smart Circular Lift SE 700?
Our engineers will conduct a free site evaluation and provide a detailed custom quotation — including installation timeline and electrical planning.
